40tph Ultrafiltration Membrane UF System for Fruit / Vegetable Juice

Basic Info

Model NO.	KYRO-40TPH
Multiple -Choice Control Valve	Automatic
Recovery Rate	50%-75%
Feed Water TDS	<2000mg/L
Membrane Vessel	FRP or Stainless Steel
Function	Water Purifying
High Pressure Pump	Cnp
Transport Package	Standard Packing
Specification	40T/H
Trademark	Kaiyuan
Origin	China
HS Code	8421299090
Production Capacity	40000L/H

Product Description

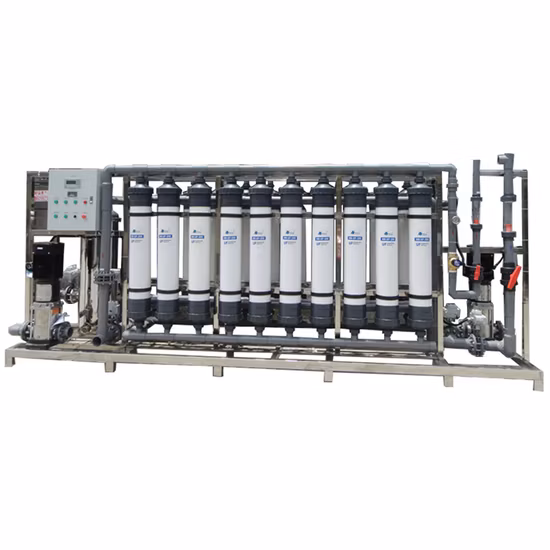

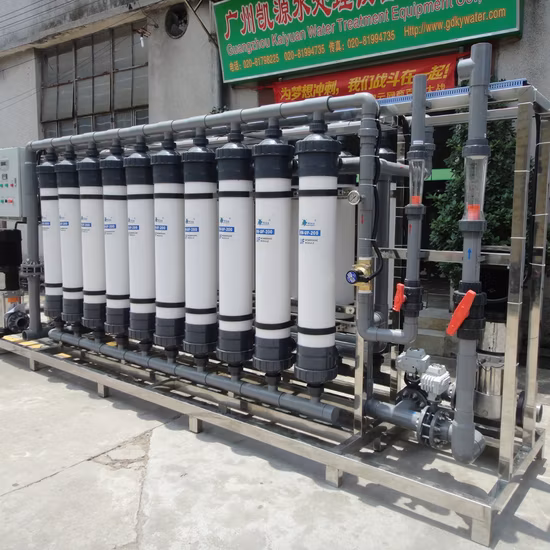

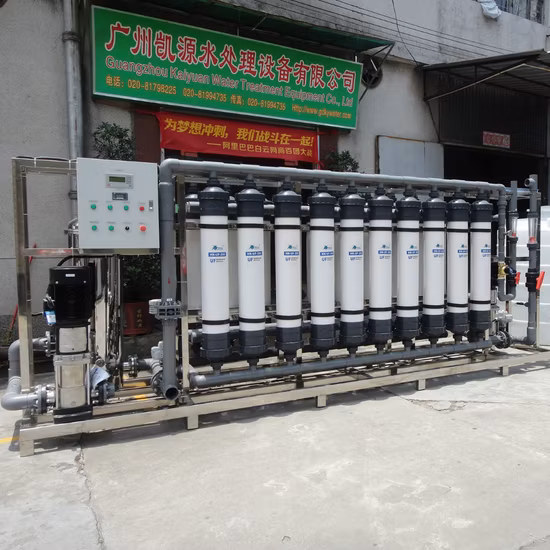

40TPH Ultrafiltration Membrane UF System For Fruit / Vegetable Juice

Equipment summarize:

Ultrafiltration (UF) is one of the most widely used membrane separation technologies. It is mainly used for the separation of macromolecules in solution, separation, concentration, deep purification, clarification, sterilization and macromolecular substances. Has a very excellent effect. In the field of water treatment, can be used to remove colloids in water, particles, bacteria, viruses, heat and macromolecule organic matter, so that water is purified.

Working Process:
Raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→UF system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter

2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane

7. UF system-- can remove big particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances

Replacement time of consumable parts:
1. Quartz sand: 12-16 months2. Activated carbon:12-16 months3. Cation resin: around two years 3. UF membranes: around one year4. PP sediment filter cartridge: every 1 month
All parts will depends on raw water quality, better quality longer life span^^

Applications:

Feed water(source water):city water, river water, lake water, underground water(borehole, well), brackish water, sea water......Treated water: 1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water2. Food and beverage industry: filter for mineral water, wines and fruit juice3. Medicine industry: filter for drug liquid, gases4. Chemical industry: filter for organic solvent5. Petroleum industry: filter for oil-field flooding



Please also kindly understand that every water treatment equipment, no matter ultra-filtration or reverse osmosis, is a ODM project as different water is of different quality. Therefor, pls tell me the follow information 1 what is your raw water (tap water, ground water .....?)2 what do you want your puifed water used for ?( drinking water.bottle water ......?)3 what capacity do you need/how many water do you consumpt daily?(1000Liter per hour,2000Liter per hour?.....)
♥ Hello! Want to know more? Welcome to contact me ^_^Your inquiry will get our prompt reply!
