Jhm-Mbr-500d-PVDF Mbr for Municipal Wastewater Treatment

Basic Info

Model NO.	JHM-MBR-500D
Nominal Pore Size	0.04micron
Material	PVDF
Lining	Pet
Membrane Area	35m2
Flux	10-20L/H.M2
Filtration Mode	Negative Pressure Sucking
Operation Pressure	0.02-0.05MPa
Max. Backwash Pressure	0.1MPa
pH	2-11
Oil Content	Less Than 3mg/L
Service Life	Not Less Than 3 Years with Correct Operation
Transport Package	Cartons with Plastic Bags
Specification	2198*844*49mm
Trademark	JHUI
Origin	Shandong, China
HS Code	842199
Production Capacity	30000000m2/Year

Packaging & Delivery

Package size per unit product 225.00cm * 87.00cm * 6.00cm Gross weight per unit product 17.000kg

Product Description

JHM-MBR-500D-PVDF MBR for Municipal Wastewater Treatment

Product Description

MBR technics is a perfect integration by membrane separation technology and normal biological treatment.Instead of traditional secondary sedimentation tank, sand filter tank by capillary hollow fiber UF membrane,the effluent water quality of this system can match reclaimed water reuse or Reverse Osmosis input waterstandard. MBR system is especially suitable for high discharge standard water treatment plants and old plants'upgrades and transformation.In wastewater treatment, MBR system has obvious advantages compared with other biological treatmentmethods:1. High remove rate of contamination, stable effluent water quality, and dispense with disinfection;2. Realized the separation of HRT (Hydraulic retention time) and SRT (sludge age time), simplify the systemdesign and operation;3. The mechanical cut-off of UF membrane can avoid the microorganism spillage, maintain high sludgeoncentration, effectively increased the volume loading, reduce the sludge loading and floor space;4. Long SRT in MBR system is helpful to the long generation period microorganisms growth, in favor ofbiodegradation on difficult degradation organic matter.5. The longer SRT also make the MBR system has the effect same as aerobic sigestion pool, and reducethe sludge volume observably and save the process cost;6. MBR technics has well control on SRT in order to adapt with the growth of nitrobacteria, enhance thenitriability.7. MBR system has compact structure, easy for integrate autocontrol and operation manage.

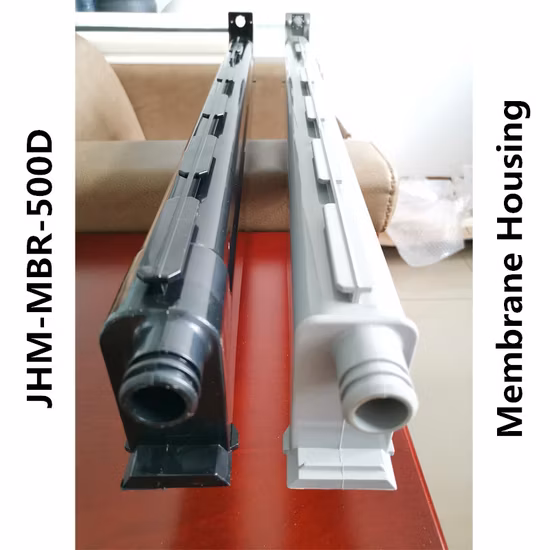

Module Type	500D
Application	Membrane Bioreactor
Norminal Membrane Surface Area	35m2
Module Dimensions
Height	2198mm
Width	844mm
Depth	49mm
Module Weight
Net Weight	16.5kg

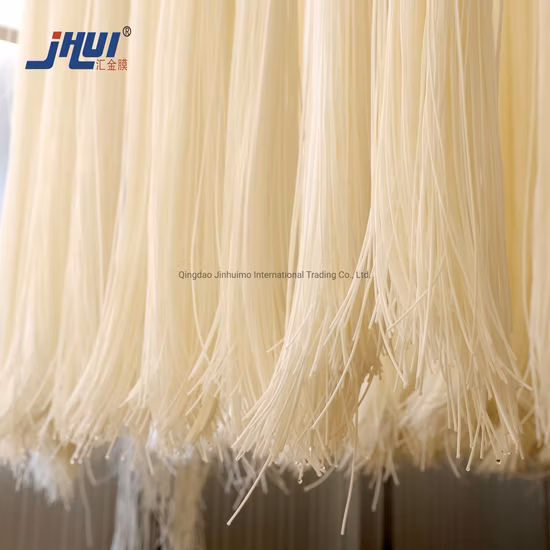

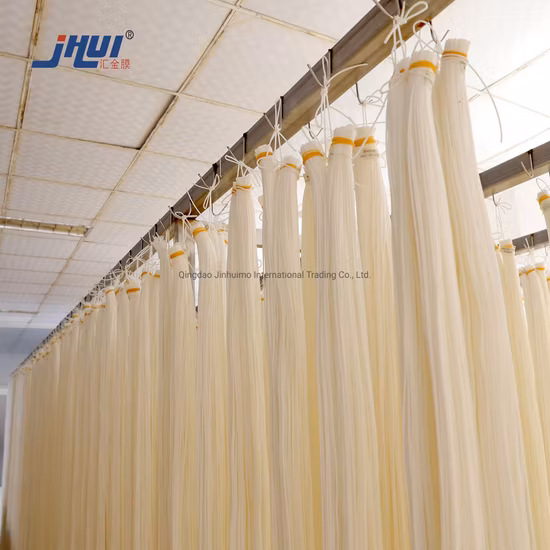

Membrane Properties
Material	PVDF
Norminal Pore Size	0.03-0.04micron
Surface Properties	Non-Ionic&Hydrophilic
Fiber Diameter	1.9mm OD/ 0.8mm ID
Flow Path	Outside-In

Other models fabricated by us

Module Type	5000 Series
Application	Membrane Bioreactor
Norminal Membrane Surface Area	25m2 (adjustable)
Module Dimensions
Height	2000mm
Width	1250mm
Depth	30mm
Module Weight
Net Weight	According to membrane surface area
Membrane Properties
Material	PVDF
Norminal Pore Size	0.03-0.04micron
Surface Properties	Non-Ionic&Hydrophilic
Fiber Diameter	2.2mm OD/ 1.0mm ID
Flow Path	Outside-In

Company Profile

Jinhuimo is meeting a global need for clean water through membrane technology treatmentsolutions. We are proud that the hollow fiber membrane and systems we design, build, maintain,and operate are making the world a better place and creating a more sustainable environment forfuture generations.
Shandong Jinhuimo Technology manufactures hollow fiber membrane&system/Reverseosmosis (RO) system and etc. Founded in 2007, we were listed in 2014, stock code: 831623.
Our quality management system assures that we are delivering the highest quality, reliable,and effective engineered water and wastewater treatment products to our customers.A solid demonstration of this quality commitment is Jinhuimo's ISO 9001 certification, in placesince 2015.

MBR Application

Municipal water supplyIndustrial water purificationMunicipal waste water treatmentIndustrial waste water treatmentLandfill leachate advanced treatmentReclaimed water reusePretreatment of RO system

MBR Cases

Our products has been exported to Roumania/Turkey/ Turkmenistan/ Malaysia/ Brazil/Australia.

Exhibitions

For the marketing and better after-sales services, we have participated in the internationwater exhibitions in Shanghai/ MalaysiaVietnam/ Thailand/ Pakistan and etc.

Other Products

Other products below of us are for your reference.

After Sales Service

The perfect after-sales services will be provided.For your proper operation, the manual/ flow diagram/ on-line video etc will be given.If you really need, the engineers will be dispatched,they will give you instructions on site.
